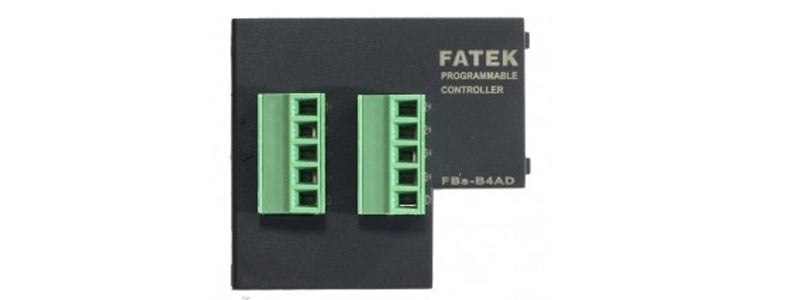

Analog Expansion Board. /
4 channels /
12 bits analog input board (0V~10V or 0mA~20mA)
| Specification | FBs-B4AD |
| Input point | 4 points |
| Output point | — |
| Input / Output value | 0~16380 (14-bit representation, valid 12-bit) |
| Input / Output polar | Unipolar |
| Input / Output counting range | 0~10V |
| Conversion time | Conversion once for each scan |
| Accuracy | ±1% |
| Isolation method | Non-isolation |
| Wiring mechanism | 3.81 mm European terminal block |
