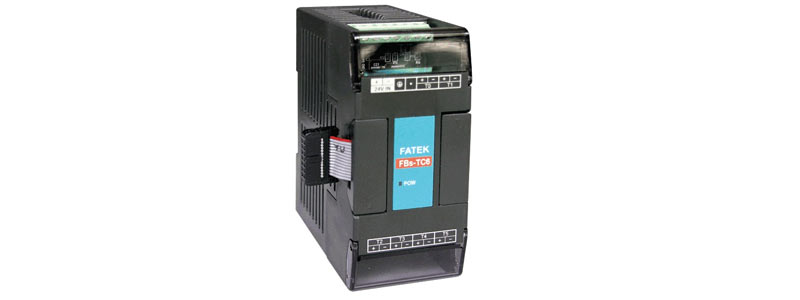

6 channel thermocouple temperature input module with 0.1 resolution.
| Specification | FBs-6TC |
| Number of input points | 6 points |
| Sensor type and temperature measurement range | Thermocouple Sensor: J (-200~1200˚C) E (-190~1000˚C) K (-190~1300˚C) T (-190~380˚C) R (0~1800˚C) B (350~1800˚C) S (0~1700˚C) N (-200~1000˚C) S ( 0~1700°C ) N (-200~1000°C) |
| Temperature Compensation | Built-in cold junction compensation |
| Resolution | 0.1°C |
| Temperature refresh time | 2 or 4 seconds |
| Overall Precision | ± (1%+1°C) |
| Isolation method | Transformer(power) and photocouple(signal) isolation, 500VAC, 1 minute,isolation between each channel |
| Power consumption | 24VDC -15%/+20%,2W max. |
| Wiring mechanism | 3.81 mm european terminal block |
