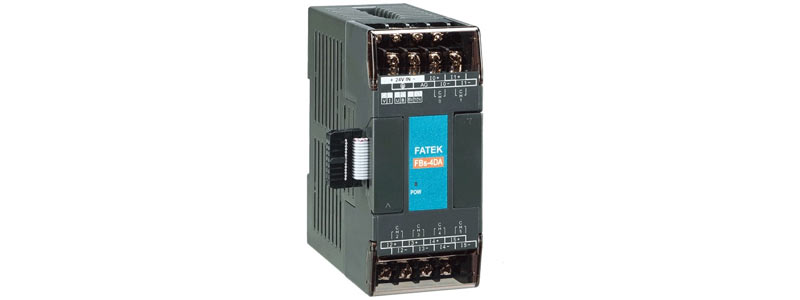

FBs-4DA, Analog Expansion Module

Analog expansion module. / 4 channel / 14 bits digital output module (-10V~0V~+10V or -20mA~0mA~+20mA)

Specification
FBs-4DA
Input point
Output point
4 points
Input/Output value
-8192~8191 or 0~16383 (14-bit)
  Input/output
Signal range
Bipolar
Voltage: -10~10V or -5~5V Current: -20~20mA or -10~10mA
Unipolar
Voltage: 0~10V or 0~5V Current: 0~20mA or 0~10mA
Maximum resolution
Voltage: 0.3mV (5V/16384) Current: 0.61μA (10mA/16384)
Accuracy
±1%
Conversion time
Conversion once for each scan
Maximum input signal
Allowable load range
Output voltage: 500Ω~1MΩ Output current: 0~500Ω
Input impedance
Isolation method
Transformer(power) and photocouple(signal) isolation, 500VAC, 1 minute, no isolation between each channel
Power consumptio
24VDC –15%/+20%, 3.2W max.
Wiring mechanism
7.62 mm fixed terminal block
